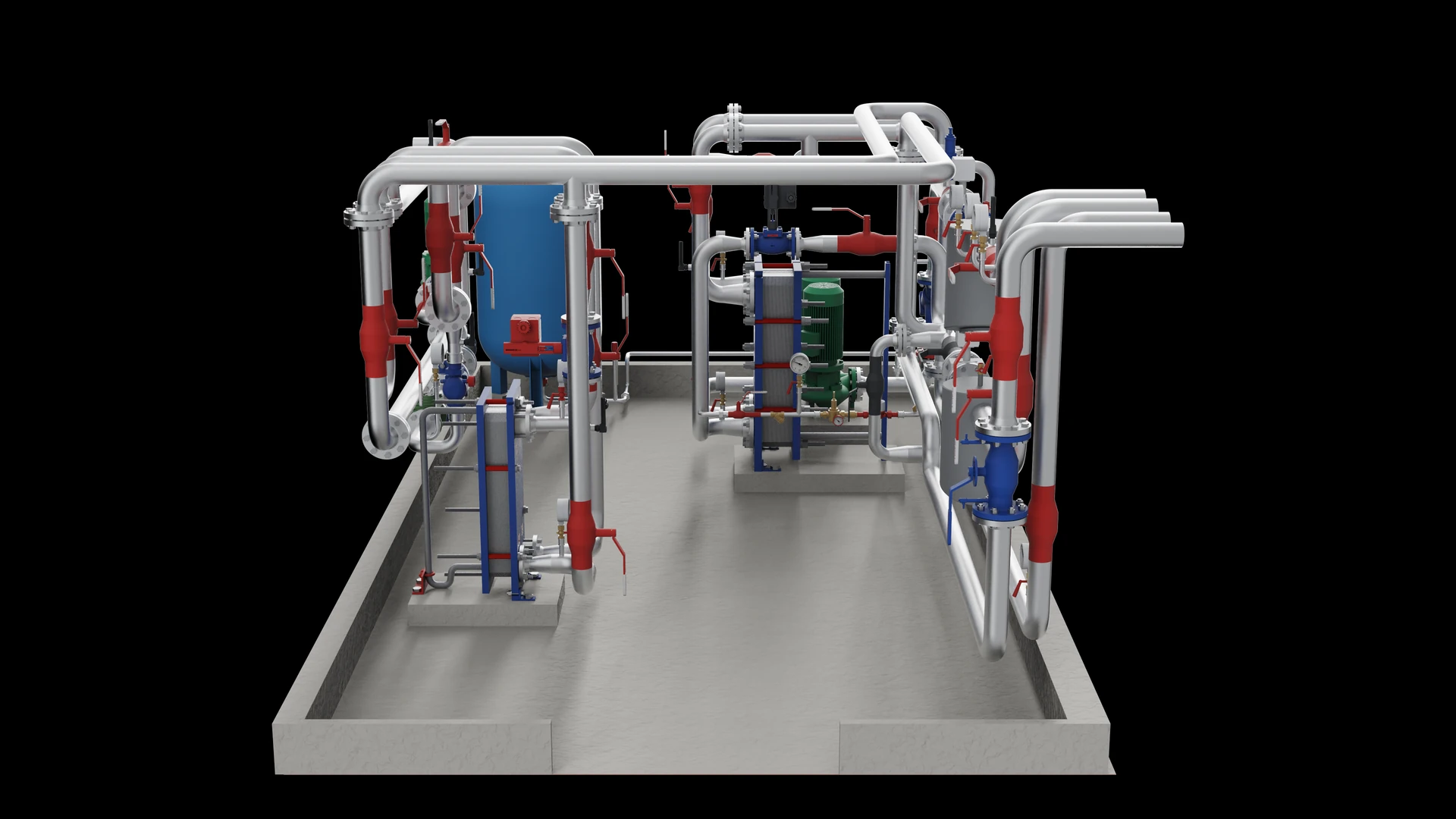

Hot-water plant room seen straight on. The blue buffer tank, two plate heat exchangers, a circulation pump, a Y-strainer and lever ball valves on a plinth

Skid, front — Inzonex Modular Insulation, hot-water skid

Hot water / The room

Plant rooms, heat networks and HIUs

One room makes the heat, and every flat above it gets a box on the wall.

A plant room generates and moves a building’s heat. It holds the heat source, the exchangers that separate one circuit from another, and the pumps that move the water. Between them sit the valves, strainers and vessels. When that room serves more than one building it becomes a heat network, and the box in each dwelling is a heat interface unit. The engineering is the same either way; what changes is who is regulated for it.

The room

What is actually in it

Generation and separation

A heat source, then a heat exchanger that separates the primary circuit from whatever it serves. The separation is what lets one side be treated, pressurised and run at a temperature the other side never sees.

Movement and control

Circulation pumps, and isolating valves either side of anything that comes out. Regulating valves on the branches that have to be balanced. Check valves where flow must not reverse.

Protection and storage

A strainer and a dirt separator keep debris out of the plant. An expansion vessel stops the pressure rising until the relief valve lifts. A buffer, on most circuits, keeps the plant from short cycling.

And a lot of hot metal

Every one of those has a surface, and in an unlagged plant room all of them are heating the room rather than the building. That is the subject of this site.

Heat networks

One plant room, many buildings

What it is

One energy centre generates the heat and sends it out as hot water. Buried insulated pipework carries it to buildings or dwellings that would otherwise each have a boiler. District heating and heat network mean the same thing. Communal heating usually means one building rather than several.

Why the losses matter more

A network runs hot water through a great deal of pipe, much of it buried, and it runs continuously. The distribution losses go on the bills of the customers who paid for the heat that arrived. Efficiency here is a bill rather than an abstraction.

Denmark is the reference and the UK is behind it

The searches follow the geography: Denmark, Germany, Ireland, Scotland. Networks in those countries differ enormously in maturity. So does what a UK operator now has to meet.

Heat interface units

The box in the flat

What it does

A heat interface unit takes hot water from the network primary. A plate exchanger inside it makes the flat’s heating and its hot water. A meter records what the flat used. It replaces the boiler, and it has no flue and nothing burning in it.

Why it is where complaints start

`No hot water` is the query. The cause usually sits upstream of the unit. A network return temperature has drifted, a strainer has loaded up, or nobody has touched a control setting since handover. The HIU is the part residents can see, so it takes the blame.

It gets serviced

Filter, plate exchanger, actuator, meter. Which is the same argument as everywhere else on this site: whatever is around it has to come off and go back on.

Regulation

Where the UK now sits

There is a regulator now

The Energy Act 2023 made Ofgem the regulator for heat networks in Great Britain. That puts networks on a footing closer to gas and electricity: authorisation to operate, conditions attached to it, and consumer protection behind it.

Technical standards and zoning

A technical assurance scheme sets what a network has to meet, and zoning is intended to designate areas where heat networks are the expected solution. Both change what an operator has to be able to demonstrate about how the network performs.

Check the current position

This is a moving programme with dates and detail that shift. Treat the shape above as the direction of travel and confirm the current requirements with Ofgem and DESNZ rather than with a page written earlier.

What it means for a plant room

Performance stops being a private matter. An operator has to know and evidence its distribution losses, its return temperatures and the state of its energy centre. That is a different reason for insulating a plant room from the one this site usually gives.

Reference

The words people use

Term	What it means	What it covers
Plant room	Where heat is generated and moved	One building
Communal heating	One energy centre serving one building	Flats in one block
District heating / heat network	One energy centre serving many buildings	A street, an estate, a city
Heat interface unit	The dwelling connection to the network	One flat or house

Term · What it means · What it covers

Asked about plant rooms, heat networks and hius

Questions.

Answers distinguish modelled heat-loss estimates from equipment selection and service guidance.

What is a plant room?

The space where a building or site generates and moves its heat. It holds the heat source, the exchangers that separate one circuit from another, and the circulation pumps. Between them sit the valves, strainers and vessels. Every bare surface in there heats the room rather than the building.

What is the difference between district heating and communal heating?

Scale. Communal heating usually means one energy centre serving one building - a block of flats. District heating, also called a heat network, means one centre serving several buildings through buried distribution pipework. The engineering is the same; the losses and the regulation are not.

How does a heat interface unit work?

It sits in the dwelling and takes hot water from the network primary. A plate exchanger inside it transfers that heat into the flat heating and the domestic hot water, and the two circuits never mix. A meter records what the flat used. There is no combustion and no flue - the burning, if any, happens once, in the energy centre.

Why does my heat interface unit have no hot water?

Usually something upstream rather than the unit itself. The network return temperature has drifted, the strainer in front of the unit has loaded up, or nobody has touched a control setting since handover. The HIU is the part a resident can see, so it takes the blame.

Who regulates heat networks in the UK?

Ofgem, for Great Britain, following the Energy Act 2023 - with authorisation to operate, conditions attached to it, technical standards and consumer protection. The programme is still being rolled out, so confirm the current requirements with Ofgem and DESNZ rather than relying on a summary.
