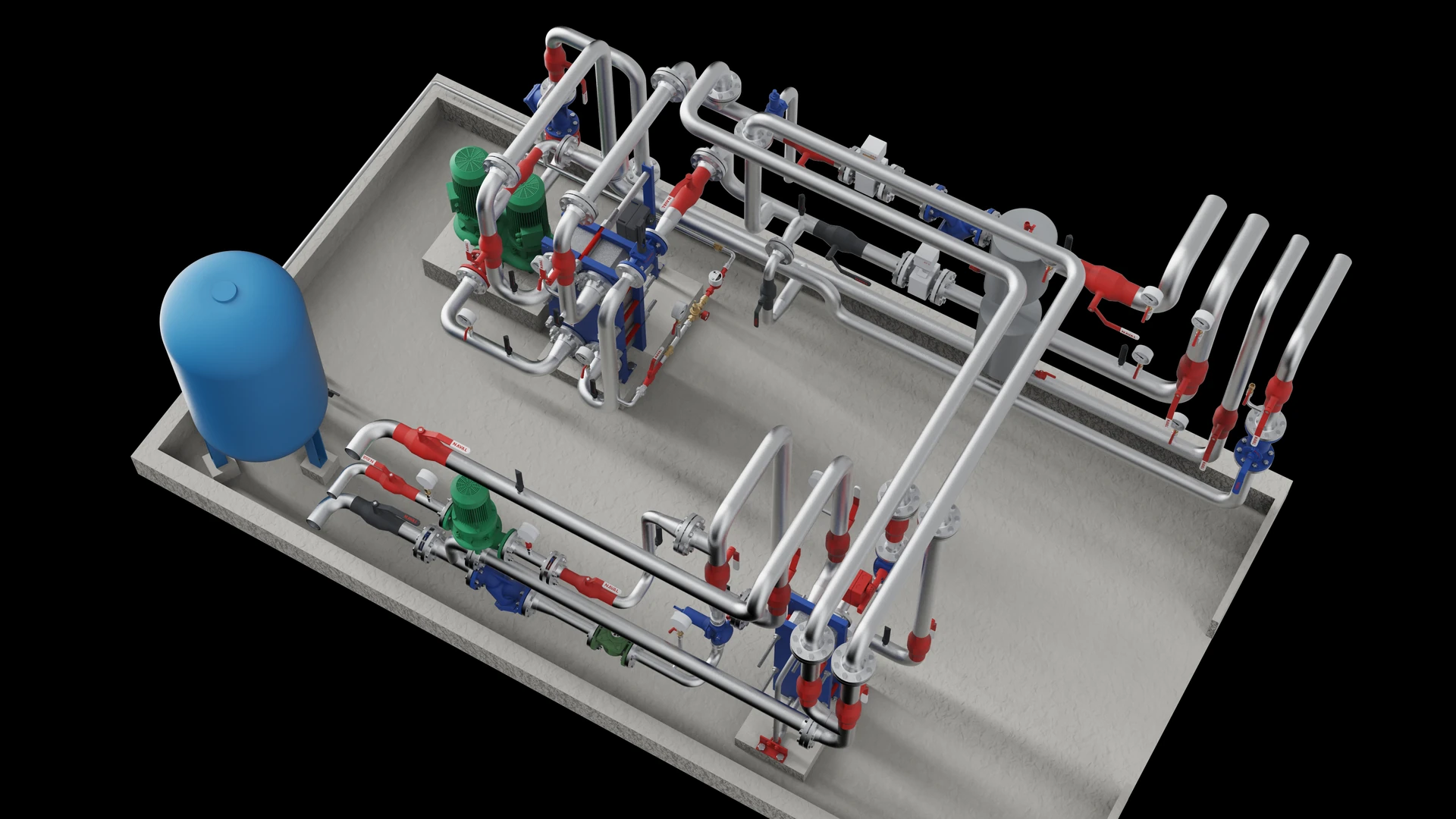

Hot-water skid from above and to the right. Long bare stainless pipe runs across the plinth with bends and branches, and the blue buffer tank at the far end

Skid, right isometric — Inzonex Modular Insulation, hot-water skid

Hot water / Pipework

Pipework and insulation thickness

Straight pipe runs lose heat too. Length, temperature and insulation determine how much.

Pipe insulation is the one part of a plant room that usually does get insulated. A surprising amount of the loss is still there. Not in the middle of a lagged straight, where the material does its job, but at the ends of it. The valve it stops short of. The flanged joint it was cut around. The bracket it is squashed against, and the branch nobody finished.

Thickness

What actually sets it

Four numbers and no more

Pipe outside diameter, service temperature, ambient temperature and the thermal conductivity of the material at that temperature. Everything else is a consequence. The balance is solved for the outer surface temperature, and it is iterated because the surface coefficient depends on the answer.

More is not linear

The first millimetres do most of the work. Doubling thickness does not halve the loss, because each added layer sits on a larger surface and works against a smaller temperature difference. Thickness tables flatten out for the same reason. Specifying heavily is not the same as specifying well.

Which criterion is being met

A thickness can be chosen to limit heat loss, to stop condensation, or to meet an economic thickness. It can also be chosen to hold the surface under our 45 °C touch-safe target, which we set against EN ISO 13732-1. They are different calculations and they give different answers. State which one applies rather than assuming it.

Where the tables live

BS 5422 carries recommended thicknesses for building-services pipework in the UK; ISO 12241 and VDI 2055-1 carry the method rather than the answers. Check against the current edition before specifying — the tables are revised, and a thickness copied from an old drawing is not a calculation.

Where it fails

The ends of a lagged run

It stops at the fitting

A straight is easy to lag and a valve is not, so the lagging stops short. ISO 12241 gives an equivalent bare area for a valve that already includes its flanges and stem. That area is far larger than the pipe the valve interrupts. A run with several valves loses more at the valves than along its length.

Supports and brackets

Where the pipe rests on a bracket the insulation is compressed, and compressed material conducts. Without a load-bearing insert the support is a thermal bridge, and it is a bridge repeated every few metres.

Anything that was opened once

A joint broken for maintenance takes the lagging around it with it. That section rarely comes back. After a few years of ordinary work, a run lagged fully at handover is lagged between the fittings only.

Wet insulation

Water displaces the air the material works by, so a soaked section conducts instead of resisting and loses more than bare pipe. It also holds the steel wet, which is where corrosion under insulation starts.

Fixed against removable

Two different products

Fixed lagging

Cut, wrapped and cladded in place. It is the right answer for a straight run that nobody will ever open, and it is cheaper per metre than anything else.

Removable modules

Made to the geometry of one fitting, closed with fastenings that undo by hand, and refitted after the work. They cost more per item. They are also still there in year five, and on a component that gets opened that is the only comparison that matters.

The honest rule

Fixed on the straights, removable on everything that is operated, measured, drained or dismantled. Fixed lagging on a valve insulates it until the first time somebody opens it.

Reference

Thickness criteria

CriterionWhat it meansWhat drives the answer
Limit heat lossEconomic or specified loss per metreFalls off steeply with the first layers
Surface-temperature target45 °C is the study target, not a limit set by EN ISO 13732-1Assess contact risk by material and duration
Prevent condensationSurface above the dew point of the roomA cold-service criterion, not a hot one
Freeze protectionDelay time before the contents reach zeroDepends on flow and standstill, not steady state

Criterion · What it means · What drives the answer. Method from ISO 12241 and VDI 2055-1; UK thickness tables in BS 5422 — confirm against the current edition before specifying.

Asked about pipework and insulation thickness

Questions.

Answers distinguish modelled heat-loss estimates from equipment selection and service guidance.

How is pipe insulation thickness calculated?

From the pipe outside diameter, the service temperature, the ambient temperature and the conductivity of the material at that temperature. The heat balance is solved for the outer surface, and it has to be iterated. The surface heat transfer coefficient depends on the surface temperature you are solving for. ISO 12241 and VDI 2055-1 give the method.

Is thicker pipe insulation always better?

No, and it stops paying quite quickly. The first millimetres do most of the work. Each further layer sits on a larger outer surface and works against a smaller temperature difference, so the gain per millimetre falls away. Recommended-thickness tables flatten out rather than continuing to climb.

What thickness of insulation do I need for a hot-water pipe?

It depends which criterion you are meeting - a heat-loss limit, a touch-safe surface at 45 degrees, condensation control, or an economic thickness. They are different calculations with different answers. In the UK, BS 5422 carries the recommended thickness tables for building-services pipework; check the current edition rather than an old drawing.

Why does insulated pipework still lose so much heat?

Because the loss is not in the middle of the lagged straights. It is at the valves and flanges the lagging stopped short of. It is at the brackets where compression turns the insulation into a thermal bridge. And it is at every section that came off for maintenance and never went back.

When should insulation be removable rather than fixed?

On anything that is operated, measured, drained or dismantled - valves, flanged joints, strainers, pumps, instruments. Fixed lagging on those is insulation that works until the first time somebody needs what is underneath. Fixed lagging is right on straight runs nobody will open.
