Estimate heat loss and payback. Enter four inputs.
| Item | Area m² | Saved kW | MWh/yr | €/yr | t CO₂/yr | Invest € |
|---|
The calculator is a screening tool, not a sales claim. It keeps the assumptions visible: heat-transfer method, energy price, efficiency, CO2 factor and insulation cost. For project work, confirm with survey and CAD area take-off.
The calculator uses the steady-state heat-transfer method of ASTM C680 and ISO 12241 — the same basis as the industry-standard 3E Plus tool — applied to removable Inzonex insulation. Below: the physics, the numbers that drive payback, and where bare equipment quietly burns money.
A bare metal pipe surface sits at roughly process temperature, so its loss is governed only by the outer film: Q/L = hₒ·π·D·ΔT. With a combined coefficient hₒ≈10 W/m²·K, a DN50 (2″) line at 150 °C in 20 °C air loses about 250 W/m.
Add 50 mm insulation and conduction dominates: Q/L = ΔT / [ ln(r₂/r₁)/(2πk) + 1/(hₒ·π·D₂) ]. Loss falls to ~43 W/m — an ≈82% cut.
An uninsulated valve or flange radiates like 0.5–1 m of bare pipe. A handful of bare valves on a line can equal the loss of the whole insulated run. Because their geometry is awkward, they're usually left bare — which is exactly why removable insulation pays back fastest here.
The calculator adds each valve as an equivalent bare-pipe length, so you see their true cost.
Burn-risk guidance (ASTM C1055, EN ISO 13732-1, OSHA) flags surfaces above ~60 °C / 140 °F. A bare 150 °C pipe is a serious burn hazard; 50 mm of insulation brings the surface to about 29 °C — touch-safe — and Inzonex modular insulation typically targets ≤45 °C.
The result panel flags whether your insulated surface is touch-safe.
Annual saving = heat saved × operating hours ÷ system efficiency × energy price. A single insulated DN50 run with valves can save ~€7,010/yr and ~20 t CO₂/yr, paying back in about 11 months.
Across a plant the numbers compound fast — use Add to project to total a whole site.
Use the calculator first, then send the equipment list for review. We use the submitted inputs to prepare an element-by-element heat-loss assessment, surface-temperature check and project quote.
Common questions about pipe and equipment heat-loss calculation, insulation thickness and payback.
A bare DN50 (2″) steam line at 150 °C in 20 °C still air loses roughly 250 W per metre. Over 50 m plus four valves that's about 13 kW — around 100 MWh of fuel a year. Removable insulation cuts this by about 82%.
50 mm of mineral wool (k≈0.055 W/m·K at ~85 °C mean) reduces heat loss by roughly 82% and brings the surface to about 29 °C — touch-safe. Thicker insulation gives diminishing returns; the calculator shows the trade-off live as you change thickness.
Payback = installed insulation cost ÷ annual energy saved in money. Annual saving = heat saved (W) × operating hours ÷ system efficiency × energy price. Industrial removable insulation on hot lines typically pays back in 9–24 months.
It uses a simplified steady-state method based on ASTM C680 / ISO 12241 for cylindrical, flat and spherical geometries, with a combined outer surface coefficient. Results are indicative screening estimates; verify critical design and reporting values with a qualified survey and project-specific inputs.
The calculator uses 60 °C as a screening threshold. Under ASTM C1055 and EN ISO 13732-1, an acceptable contact temperature depends on contact time, surface system and injury criterion. Inzonex projects normally target ≤45 °C where ambient conditions and the equipment duty allow, with the final design verified for the application.
Insulating a 50 m DN50 (2″) steam line at 150 °C with removable mineral wool cuts heat loss by ~82% and avoids about 20 t CO₂ per year.
Yes. It calculates the insulated outer surface temperature. The 60 °C value is a screening threshold only; acceptable contact temperature depends on contact time and surface conditions. Inzonex projects normally target ≤45 °C where ambient conditions and duty allow, with the final personnel-protection design verified for the application.
The insulation must keep the outer surface above the ambient air dew point. Work out the dew point from air temperature and relative humidity (Magnus formula), then add enough thickness so the surface stays above it. The Condensation control tab solves this directly — e.g. air at 30 °C / 80% RH has a dew point near 26 °C, so a cold line needs roughly 20–30 mm of closed-cell insulation with a vapour barrier to stay dry and avoid corrosion under insulation.
Insulation slows but doesn't permanently prevent freezing of stagnant water — it buys time. Still water cooling to 0 °C follows lumped-capacitance: t = R·C·ln((T₀−Tₐ)/(0−Tₐ)). Insulating a small line typically multiplies the bare time-to-freeze several-fold; for indefinite protection use electric heat tracing under the insulation. The Freeze protection tab returns the time-to-freeze at any thickness.
A bare valve or flange loses about as much heat as 0.5–1 m of bare pipe — roughly 150 W each on a DN50 line at 150 °C. A few bare valves can equal the loss of a whole insulated run, so removable valve & flange insulation pays back fastest. The calculator adds each valve as an equivalent bare-pipe length.
Tanks and vessels are modelled by surface area — flat walls as a flat plate, dished heads as a sphere (ASTM C680). A bare 80 °C tank wall in 20 °C air loses about 600 W/m² (hₒ·ΔT); 50 mm of insulation cuts that by ~85%. Enter the surface area, temperature and insulation thickness on the Flat surface or Vessel tab.
Results read in W and W/m, total kW, and annual kWh / MWh, plus money saved and CO₂ avoided. For US units, 1 W/m ≈ 1.04 BTU/hr·ft and 1 kW ≈ 3,412 BTU/hr. Energy is shown in your own currency (€, $, £) at the price you enter.
NPS (½″–16″) and DN (DN15–DN400) are just two labels for the same outer pipe diameter — DN50 is 2″, DN100 is 4″. Pick whichever your spec uses; the heat-loss result is identical. Switch the sizing standard at the top of the calculator.
Yes — add multiple items across pipes, flat surfaces, heat exchangers and vessels into one project for a whole-site total of energy, cost and CO₂. For a full equipment list and an exact quote, send your data to Inzonex for a heat-loss report.
Yes, as preliminary evidence. Measured and verified insulation savings can support applicable ESOS action plans, SECR energy-efficiency reporting, CSRD/ESRS E1 disclosures and ISO 50001 energy-performance work when the values fall within the reporting boundary. This calculator provides an estimate, not compliance, certification or automatic reporting eligibility. Request a heat-loss report →
Yes. A bare 150 °C surface is a burn hazard. The calculator uses 60 °C only as a screening threshold; acceptable contact temperature depends on contact time and surface conditions. Inzonex projects normally target ≤45 °C where ambient conditions and duty allow. Final personnel-protection design must be verified for the application.
No file yet? Download a template with the right columns and example rows.
Optional analytics cookies help improve this free tool. Privacy
If the calculator identifies useful heat loss, the next step is a survey-based removable-insulation scope for valves, flanges, boiler doors, steam lines and other maintained hot surfaces.

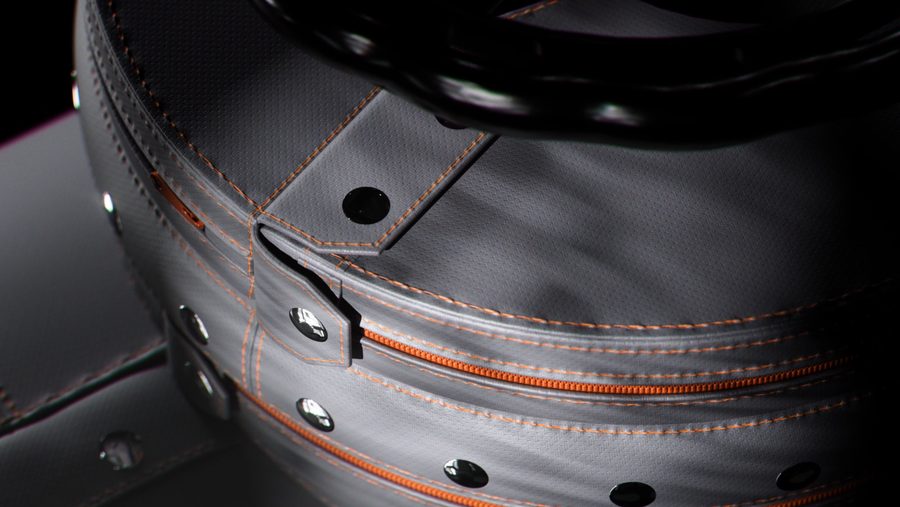

See Inzonex Modular Insulation ->
