Inzonex← The hot-water roomYour calculated result

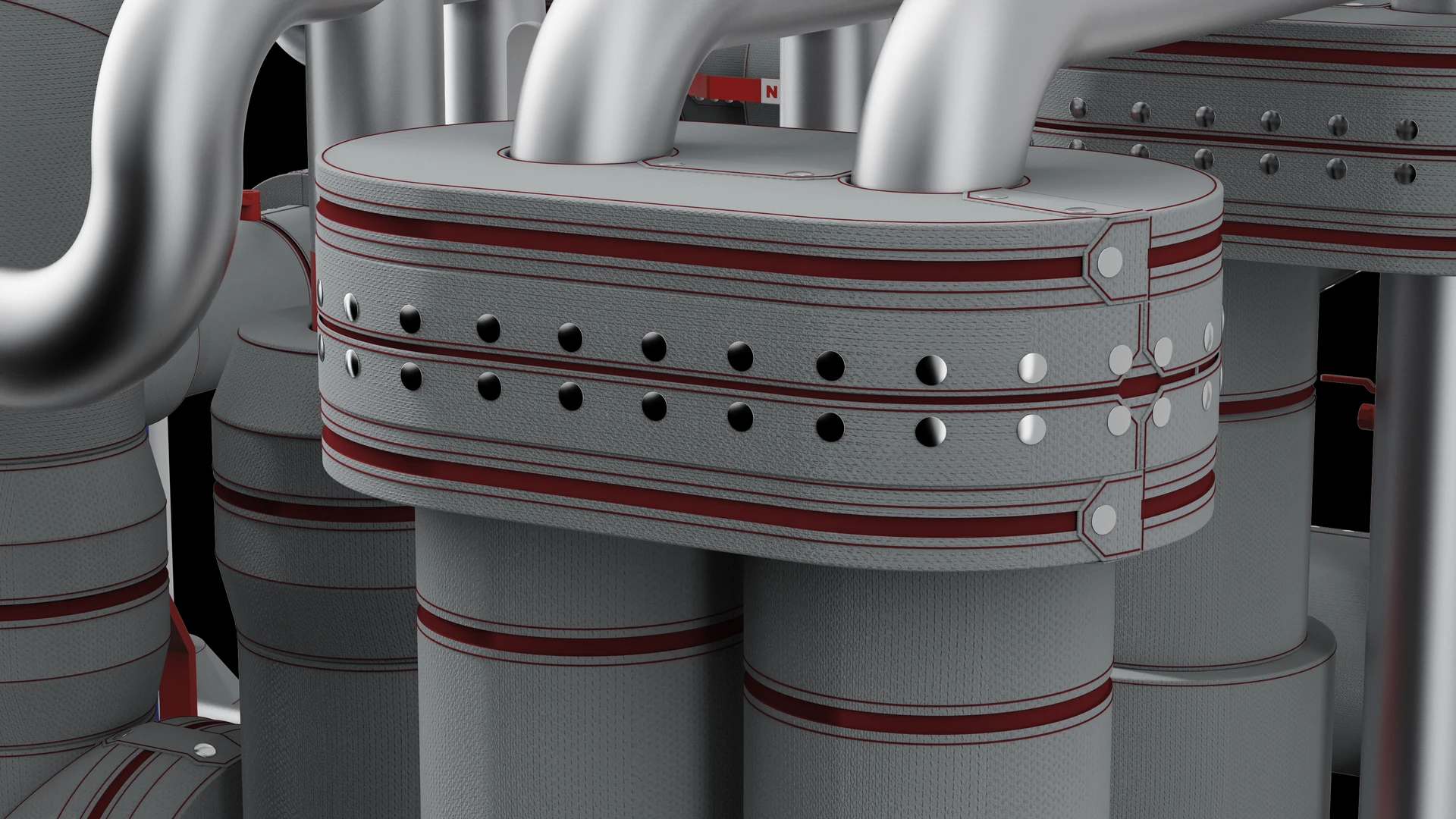

Flanged joints, uninsulatedFlanged joints, insulated by Inzonex
04 / Equipment
Without insulationWith removable insulation
‹›
Flanged joints1.9 kWbare101 Winsulated94.6 %less
Drag to compare
Views

Inzonex Modular Insulation · Hot-water skid

Hot-water flanged joints

Estimate for one hot water skid:

The figures initially displayed are example scenarios.

Energy cost saving / year€93660 €/MWh fuel
Energy saved per year14.0 MWhAt 8,000 operating hours
Estimated emissions avoided3.15 t CO₂e201.6 kg CO₂e/MWh fuel
Modelled outer surface23.5 °CBelow the 45 °C design target

Estimate: 60 °C bare surface · 8,000 operating hours/year.

€936energy cost saving / year14.0 MWhretained

01 / For your operating conditions

Your calculated result

Change any input and every figure recomputes. The defaults describe the equipment modelled here.

°C
m²
h/yr
mm
°C
€/MWh
€

02 / What this is

Flanged joints,
and what it costs bare.

Every joint is a fin the pipe did not ask for.

A flange is a flat collar on the end of a pipe or fitting. It bolts face to face against a matching collar with a gasket between them, so the joint comes undone without cutting the pipe.

On this hot-water skid there are 18 each with a surface above room temperature. At 60 °C they shed 1.9 kW into the plant room. With 50 mm of removable insulation the same surfaces shed 101 W, 94.6 % less. The module settles at 23.5 °C, at or under our 45 °C insulated-surface design target. We set that target against the burn thresholds in EN ISO 13732-1.

Calculation basis
Steady-state estimate based on the dimensions and operating conditions shown. Confirm project figures with measured equipment data.

03 / Inzonex benefits

Where the heat goes.

Flanged joints on the hot-water skid: pump suction and discharge, exchanger ports, valve pairs and the meter run. Made to EN 1092-1 PN16 on this circuit. Modules unclip for operation and inspection, then refit onto the same geometry.

01 / Standards

PN16 here, ANSI elsewhere

European plant is dimensioned to EN 1092-1 by nominal pressure — PN6, PN10, PN16, PN25. North American plant uses ASME B16.5 classes 150, 300, 600. The bolt circle and the raised face differ, so a PN16 flange and a class-150 flange of the same DN do not mate.

02 / Types

Weld-neck, slip-on, blind

Weld-neck carries the load into the pipe and is what you find on a plant-room header. Slip-on is quicker to fit and weaker in fatigue. Blind closes a branch kept for future use — and a blind flange on a live header is a hot plate with nothing behind it.

03 / Maintenance

Undone, not unwrapped

A joint is broken to change a gasket, to lift a pump or to rod a strainer. Bolts need a socket square on the nut, so a cover that has to be cut to reach them is cut once and never refitted.

04 / Problems

Where the leak shows first

Gasket relaxation after the first heat cycle is the usual cause. Joints get re-torqued warm. A weeping flange under fixed lagging soaks the insulation and starts corrosion under it, unseen.

04 / Scenarios

Area at each service temperature.

Bare surface loss per item. Nothing here is interpolated — each cell is a separate solution of the same balance, at 20 °C ambient.

Reference scenario50 °C55 °C60 °C65 °CInsulated 60 °CCut
Area scenario 1Not a product size42 W51 W60 W69 W3 W94.6 %
Area scenario 2Not a product size47 W57 W67 W78 W4 W94.6 %
Area scenario 3Not a product size54 W65 W77 W89 W4 W94.6 %
Area scenario 4Not a product size65 W78 W92 W106 W5 W94.6 %
Area scenario 5Not a product size73 W88 W103 W119 W6 W94.6 %
Area scenario 6Not a product size90 W109 W128 W148 W7 W94.6 %
Area scenario 7Not a product size112 W135 W159 W183 W9 W94.6 %
Area scenario 8Not a product size143 W172 W202 W234 W11 W94.6 %
Area scenario 9Not a product size201 W242 W285 W330 W15 W94.6 %
Area scenario 10Not a product size271 W327 W384 W444 W21 W94.6 %
Area scenario 11Not a product size363 W438 W515 W596 W28 W94.6 %
Area scenario 12Not a product size562 W678 W798 W922 W43 W94.6 %
Area scenario 13Not a product size823 W992 W1.2 kW1.3 kW63 W94.6 %

Illustrative areas, not verified DN-to-area mappings for this equipment. Replace the input with measured external geometry for a project calculation. Physical bolt, nut, flange and stem coverage must be checked separately.

Insulated column: 50 mm lamella at λ 0.038 W/m·K. Outer surface calculated without clamping. Our 45 °C design target is checked against the burn thresholds in EN ISO 13732-1

05 / Result

What it comes to.

Outer surface at 50 mm
23.5 °CMeets the 45 °C design target
Bare metal at 60 °C
Above the 45 °C insulated-surface design targetContact risk depends on material and duration; no burn time is calculated
Average payback
Enter your installed cost to calculate payback.

06 / Questions

Questions.

What is a flange?

A flat collar on the end of a pipe, bolted against a matching collar with a gasket between them. It is what lets a pump, a valve or a heat exchanger be removed without cutting pipework. It is also the thickest ring of metal on the run, and it loses heat out of proportion to its length.

What are the types of flange?

Weld-neck has a tapered hub welded to the pipe and carries bending load, which is what a plant-room header needs. Slip-on sits over the pipe and is fillet-welded both sides — quicker, weaker in fatigue. Blind has no bore and closes a spare branch. Threaded and lap-joint appear on smaller and on lined systems.

What is the difference between PN and ANSI flanges?

PN is the European series in EN 1092-1, rated by nominal pressure in bar — PN6, PN10, PN16, PN25, PN40. ANSI, properly ASME B16.5, is rated by class — 150, 300, 600. The two use different bolt circles and different numbers of bolts. A PN16 and a class-150 flange of the same DN will not bolt together. They are not interchangeable and there is no adaptor: you change the flange.

What size flange do I need?

The flange follows the pipe, not the other way round. DN is the nominal bore of the pipe it terminates, and the pressure rating follows the system. So a DN50 PN16 pipe takes a DN50 PN16 flange. Outside diameter, bolt circle and bolt count then come from the table in EN 1092-1 for that combination.

Why does a flange leak?

Nearly always the gasket. It relaxes after the first heat cycle. Joints on a new circuit are re-torqued warm. After that the usual causes are uneven bolt-up, a face damaged during assembly, or a gasket left in past its service life. Under fixed lagging a weep is invisible: it soaks the insulation, and corrosion under insulation starts there.

How much heat does a bare flange lose?

Modelled here: 18 joints at 60 °C lose 1.9 kW bare and 101 W with 50 mm — 94.6 per cent less. The figure covers both faces and the bolting. One joint loses more than the half-metre of pipe on either side.

07 / Method

How the figure is produced.

Calculation basis
Steady-state estimate based on the dimensions and operating conditions shown. Confirm project figures with measured equipment data.

Insulated surface: up to 45 °C.

08 / Going deeper

How to specify and service them.

The figures on this page say what the heat costs. These say which type to order, which standard it has to match, and why the joint is weeping.
