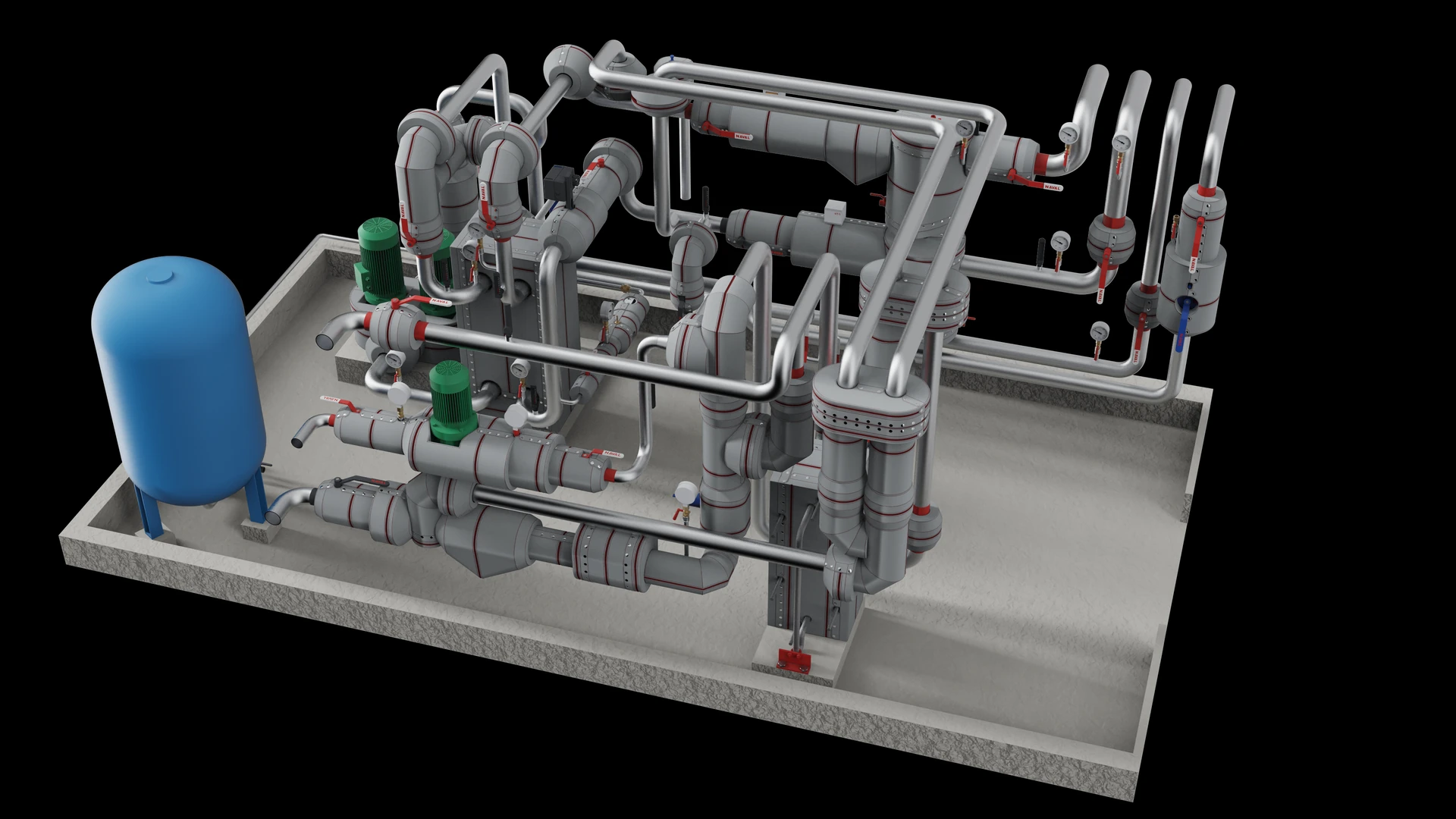

Skid, left isometric, modules fitted — Inzonex Modular Insulation, hot-water skid
Plant room / District heating
District heating and heat networks
One boiler house, and a mile of pipe before anyone is warm.
A heat network makes heat in one place and pipes it out as hot water. It serves buildings that would otherwise each have their own boiler. District heating and heat network mean the same thing. The engineering is ordinary: exchangers, pumps, valves. One thing separates it from a single plant room. Most of the water runs where nobody can see it, staying hot on its way to and from the people paying for it.
The shape of it
Energy centre, primary, secondary
The energy centre
Where the heat is made and pushed out. It holds the generating plant, the exchangers that separate it from the distribution circuit, and the pumps. It is a plant room, and everything on this site applies to it.
The primary distribution
Buried pre-insulated pipework running flow and return between the energy centre and each building. It is the part that is expensive to install and impossible to inspect afterwards. What goes in the ground gets far more attention than what stands in the plant room.
Substations and the secondary side
At each building a heat exchanger separates the primary from that building’s own circuit. The secondary side is the one the occupants feel. It runs at whatever temperature the substation gives it, which is not the primary temperature.
Temperatures
The return is the number that matters
Flow gets the attention, return does the work
A network is judged on the temperature its water comes back at. A high return means the heat never left the water where it should have. The pumps then move more water for the same delivered heat, and every condensing boiler or heat pump upstream loses efficiency.
Networks have been getting colder
Networks ran on steam, then on water above 100 °C, then below it. Current design pushes lower still. A lower flow temperature cuts the distribution losses, and it is what lets a heat pump be the source at all.
Which makes losses proportionally worse
The colder the flow temperature, the smaller the useful heat in each litre, and the larger a fixed loss looks against it. Insulation stops being a refinement on a low-temperature network and becomes part of whether it works.
Losses
Where the heat goes before it arrives
In the ground
Buried pre-insulated pipe loses continuously, all year, whether or not anyone is calling for heat. Over a long network that is a standing load nothing switches off. It is why summer performance on a network is so much worse than winter.
In the energy centre
Every bare exchanger, pump casing, valve and flange in the plant room is losing into a room nobody is heating on purpose. Unlike the buried pipe, this part can be fixed in a day, on plant you can walk up to.
And it is charged to somebody
Distribution losses are paid for by the customers connected to the network. A loss in a private boiler house stays with the owner. A loss on a network appears on other people’s bills.
The plant room part
What is worth doing first
The accessible loss is the one to take
Nobody digs up a street to improve insulation. In the energy centre the loss is visible, measurable and reversible. It is usually the part that nobody ever did.
It also has to stay maintainable
A network energy centre runs continuously and is worked on while it runs. Fixed lagging over the valves and exchangers there lasts until the first intervention, which on continuous plant is not long.
Reference
The words, and what each covers
| Part | What it is | What it means for losses |
|---|---|---|
| Energy centre | Where the heat is generated and pushed out | One plant room, serving everything downstream |
| Primary | Buried flow and return between centre and buildings | Continuous loss, no access after installation |
| Substation | The exchanger separating a building from the network | Where primary becomes secondary |
| Secondary | The building’s own circuit | The temperature the occupants actually get |
Part · What it is · What it means for losses
Asked about district heating and heat networks
Questions.
Answers distinguish modelled heat-loss estimates from equipment selection and service guidance.
What is district heating?
Heat generated in one energy centre and distributed as hot water through buried insulated pipework to buildings that would otherwise each have a boiler. District heating and heat network are the same thing; communal heating usually means one building rather than several.
What is the difference between the primary and secondary side of a heat network?
The primary is the distribution circuit between the energy centre and each building. At a substation a heat exchanger separates it from the secondary - the building’s own circuit, which runs at whatever temperature the substation gives it. The two never mix.
Why does the return temperature matter on a heat network?
Because it says whether the heat was actually extracted where it should have been. The pumps then move more water for the same delivered heat. That damages every condensing boiler and heat pump feeding the network. Flow temperature is what gets specified; return temperature is what gets judged.
Where does a heat network lose its heat?
Continuously from the buried distribution pipework, all year, whether or not anyone is calling for heat. Also from every bare surface in the energy centre. Nobody can reach the buried part once it is in. The energy centre can be fixed in a day.
Who pays for heat network distribution losses?
The customers connected to it. Heat lost between the energy centre and the dwelling still has to be generated, and it still appears in what the network charges. A loss in a private boiler house stays with the owner.
