Frequently asked questions
Common questions about pipe and equipment heat-loss calculation, insulation thickness and payback.

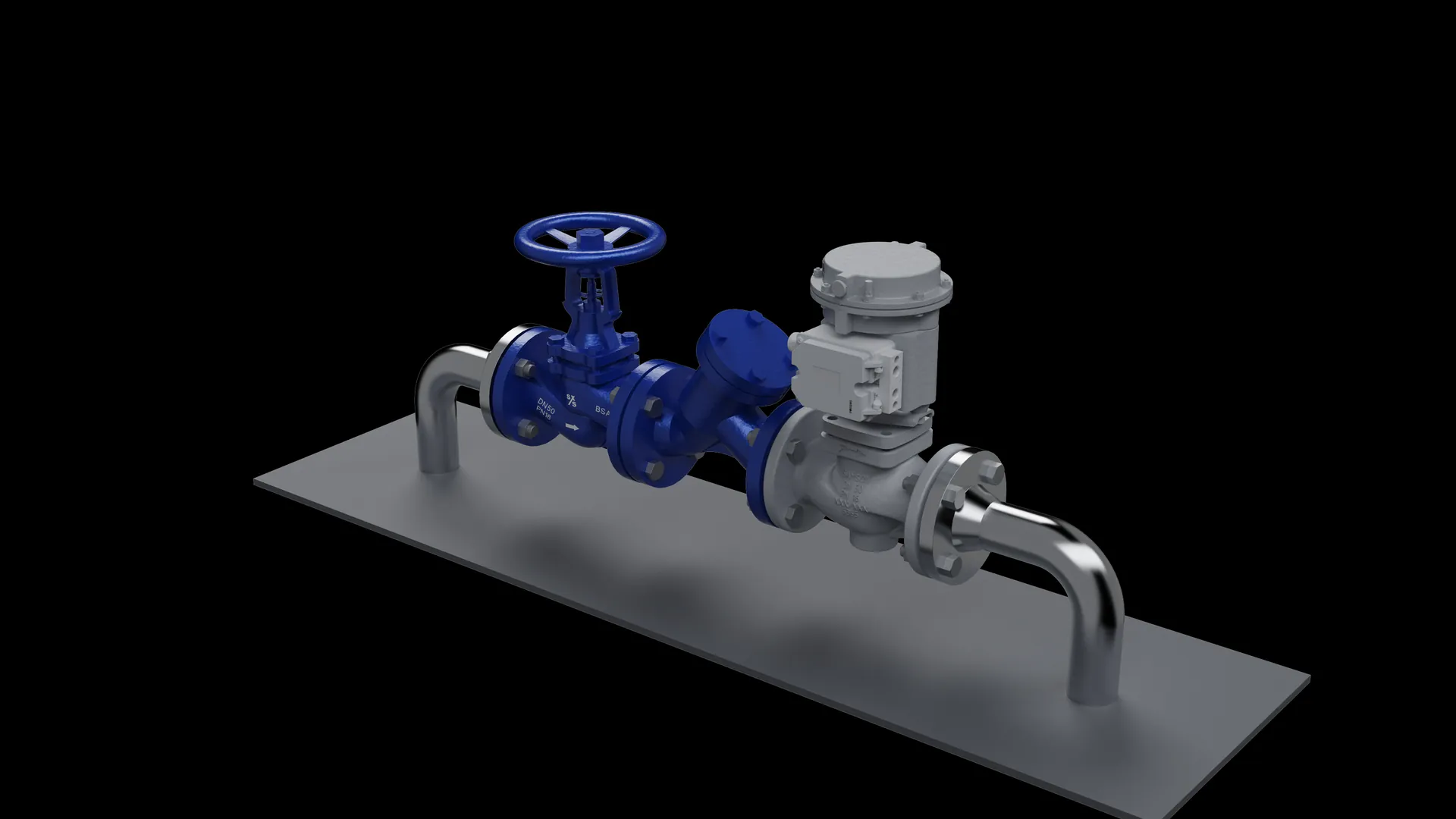

How much heat does a DN50 valve lose on steam?
A DN50 flanged stop valve at 180 °C loses 675 W bare and 28 W with 50 mm of removable insulation, 95.8 per cent less. Its area is 0.2388 m² from ISO 12241 Table A.3, with the body, flanges, bolts and stem inside that figure.
Are the bolts and flanges counted?
Yes, as surface. A bolt is clamped between two hot flanges and sits at flange temperature, so its head and nut add area in the same way as the flange ribs. For a stop valve the ISO area already contains them and nothing is added. Ball valves, control valves and strainers have no row in that table: they take the ISO area of the same size with a 1.20 allowance until you enter a measured area.
How much does a metre of bare steam pipe lose?
DN50 steel pipe at 180 °C loses 575 W per metre bare and 39 W per metre under 50 mm of insulation, in 20 °C still air.

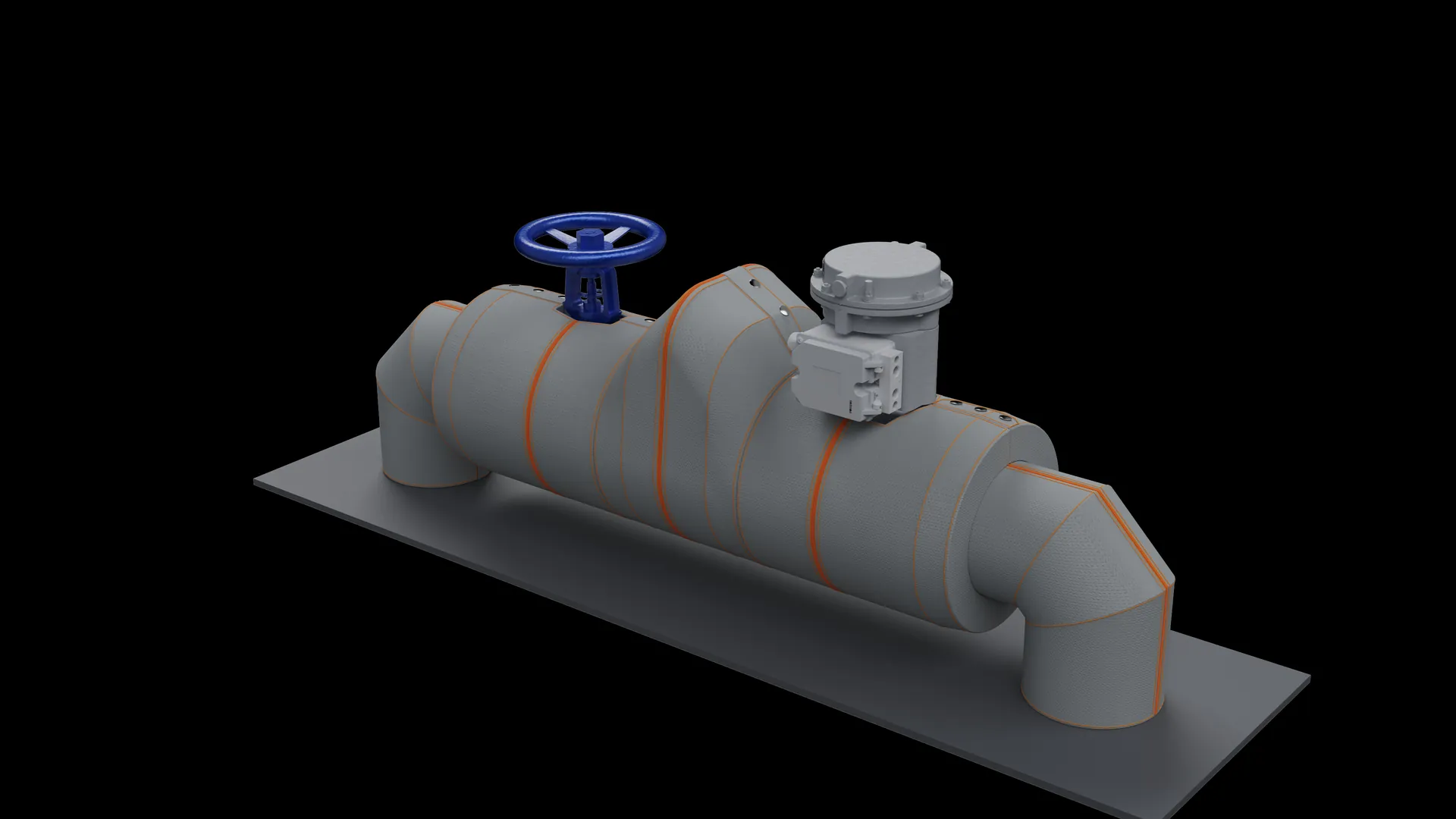

Is the actuator or the handwheel insulated?
No. Both run cooler than the valve body and stay outside the module, as in the render at the top of this page. A control valve row counts the body and its flanges.
Which temperatures can I enter?
A bare metal surface temperature from 40 to 240 °C. Use the measured metal temperature where available; it normally sits a few degrees below the fluid temperature.
Does the calculator allow for wind?
No. It solves natural convection and radiation for still air, so the figures hold indoors. An outdoor or draughty line loses more than the calculator shows.
How much heat does a bare pipe lose?
The simplified combined-coefficient reference gives roughly 250 W per metre for a DN50 (2″) steam line at 150 °C in 20 °C air. The separate convection-and-radiation inventory calculator above shows 575 W per metre bare at its 180 °C reference condition and 39 W per metre under 50 mm insulation. These have different temperatures and methods; use the current calculator with your own conditions rather than comparing them as the same case.
What insulation thickness do I need for a DN50 steam line at 150 °C?
There is no single thickness for every DN50 steam line. Select the product, process and ambient temperatures, then compare the calculated heat loss and outer-surface temperature at the available standard thicknesses.
How is insulation payback calculated?
Payback equals entered insulation cost divided by calculated annual money saving. Annual saving uses the calculated heat reduction, operating hours, system efficiency and energy price entered in the calculator.
What methodology does this calculator use?
The valve, strainer and pipe calculator on this page solves convection and radiation separately: Churchill–Chu natural convection and Stefan–Boltzmann radiation, to VDI 2055-1:2025 and ISO 12241:2022, for indoor still air with no wind term. The other calculators linked from this page use a simplified steady-state ASTM C680 / ISO 12241 method with a combined outer-surface coefficient. Both are screening estimates; verify critical design and reporting values with a qualified survey and project-specific inputs.
What surface-temperature limit does the calculator use?
The calculator uses 60 °C as a screening threshold. Under ASTM C1055 and EN ISO 13732-1, an acceptable contact temperature depends on contact time, surface system and injury criterion. Inzonex projects normally target ≤45 °C where ambient conditions and the equipment duty allow, with the final design verified for the application.
How much CO₂ does insulating a steam line save?
The calculator multiplies annual input-energy saving by the emissions factor you enter. The result therefore depends on line dimensions, temperatures, operating hours, efficiency and the selected energy source.
Does it calculate insulated surface temperature for personnel protection?
Yes. It calculates the insulated outer surface temperature. The 60 °C value is a screening threshold only; acceptable contact temperature depends on contact time and surface conditions. Inzonex projects normally target ≤45 °C where ambient conditions and duty allow, with the final personnel-protection design verified for the application.
How do I size insulation to prevent condensation on a cold pipe?
Keep the calculated outer surface above the ambient-air dew point. Enter air temperature, relative humidity, pipe temperature, diameter, insulation conductivity and thickness; use a suitable vapour-control system in the final design.
How long until water in an insulated pipe reaches 0 °C?
The Freeze protection tab estimates how long stagnant water takes to cool to 0 °C in sub-zero ambient air. It does not calculate the time to freeze solid. The result depends on pipe dimensions, insulation, starting water temperature and ambient temperature; insulation delays cooling but does not supply heat.
How is valve heat loss estimated?
Choose DN/NPS and quantity. Valve area follows the ISO 12241 manual flanged blocking-valve equation for DN15–DN200; use project dimensions for an exact product.
How do I calculate heat loss from a tank or vessel?
Enter the exposed surface area, process and ambient temperatures, insulation conductivity and thickness. The quick model applies the selected flat or vessel geometry and reports bare and insulated heat loss for those inputs.
What units does the heat-loss calculator use — W, kW, BTU/hr?
Results read in W and W/m, total kW, and annual kWh / MWh, plus money saved and CO₂ avoided. For US units, 1 W/m ≈ 1.04 BTU/hr·ft and 1 kW ≈ 3,412 BTU/hr. Energy is shown in your own currency (€, $, £) at the price you enter.
What's the difference between NPS and DN pipe sizing?
NPS (½″–16″) and DN (DN15–DN400) are just two labels for the same outer pipe diameter — DN50 is 2″, DN100 is 4″. Pick whichever your spec uses; the heat-loss result is identical. The valve and pipe calculator on this page is sized in DN; the pipe and tank calculator takes either.
Can you calculate heat loss for a whole plant or a spreadsheet of equipment?
Yes — add multiple items across pipes, flat surfaces, heat exchangers and vessels into one project for a whole-site total of energy, cost and CO₂. For a full equipment list and an exact quote, send your data to Inzonex for a heat-loss report.
Can calculator results support ESOS, SECR, CSRD or ISO 50001 work?
Yes, as preliminary evidence. Measured and verified insulation savings can support applicable ESOS action plans, SECR energy-efficiency reporting, CSRD/ESRS E1 disclosures and ISO 50001 energy-performance work when the values fall within the reporting boundary. This calculator provides an estimate, not compliance, certification or automatic reporting eligibility. Request a heat-loss report →
Can insulation support EHS and personnel protection?
Yes. A bare 150 °C surface is a burn hazard. The calculator uses 60 °C only as a screening threshold; acceptable contact temperature depends on contact time and surface conditions. Inzonex projects normally target ≤45 °C where ambient conditions and duty allow. Final personnel-protection design must be verified for the application.
