Digital twin vs simulation: models, data and update frequency
Simulation explores behaviour under selected conditions. A digital twin maintains a representation of an identified real entity or process, updated at a frequency and fidelity chosen for its use case. A twin can use simulation, but the terms are not interchangeable: neither a physics solver nor a continuously streaming sensor feed is the universal definition.
The DTC definition separates representation, real-world counterpart and synchronization. Its model categories include structured state as well as executable simulation. Read the definition and explanation.
What changes between the two?
| Decision | Simulation study | Digital-twin application |
|---|---|---|
| Question answered | What might happen under these inputs? | What does this representation tell us about its real counterpart? |
| Model | Executable behaviour model; may use measured inputs | Representation of identity, state and relationships; may include simulation |
| Update plan | Defined by the study or execution environment | Defined for the counterpart and intended decision |
| Evidence to keep | Inputs, model version, assumptions and validation cases | Those relevant model records plus identity, update and data-quality evidence |
| Useful example | Compare two proposed pipe layouts before installation | Track an installed system against its expected state, using a documented update policy |
These are planning distinctions, not a certification checklist. A simulation may run online, and a twin may be updated periodically. NIST describes manufacturing synchronization at a rate set by the application. See NIST AMS 400-2.

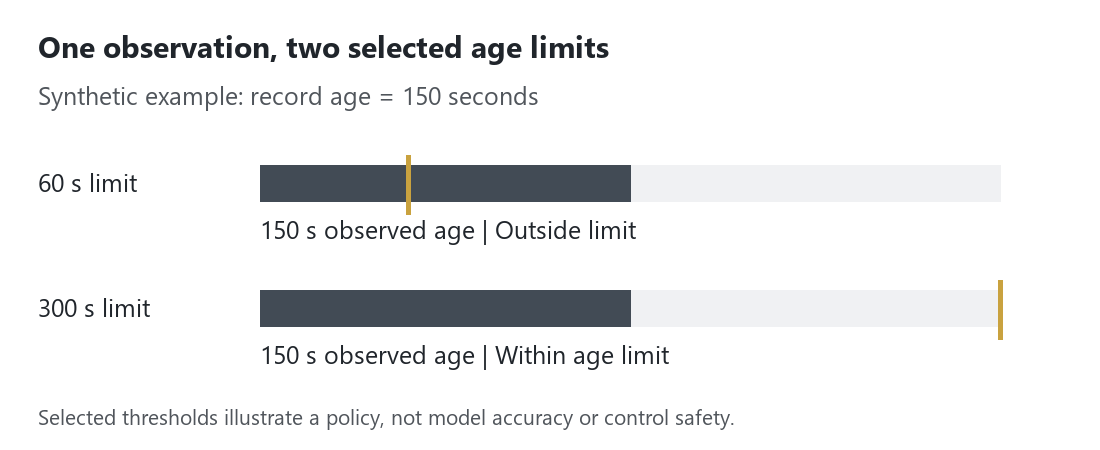

One record, two update policies
At 12:00:00 UTC, an example pump record observed at 11:57:30 UTC is 150 seconds old. It exceeds a selected 60-second maximum age but falls within a selected 300-second maximum age. Neither limit is an equipment standard; both are invented teaching inputs.
Check a record against an age limit
Older than selected limit: 150 seconds old; selected maximum 60 seconds.
Checks identity, timestamp and declared quality only. It does not classify the system as a twin or authorize an operational decision.
Reproduce the seven cases
All records below are authored examples, not customer telemetry. A mismatched identifier or absent record has no comparable age in this check. Future timestamps and non-good quality are reported separately.
| Example | Age (seconds) | Selected limit (seconds) | Result |
|---|---|---|---|
| 150-second record, 60-second limit | 150 | 60 | Older than selected limit |
| Same record, 300-second limit | 150 | 300 | Within selected age limit |
| Exactly at the selected limit | 60 | 60 | Within selected age limit |
| No record available | Not evaluated | 60 | No record |
| Recent record belongs to another asset | Not evaluated | 60 | Different asset |
| Timestamp five seconds in the future | -5 | 60 | Future timestamp |
| Recent record with uncertain quality | 15 | 60 | Quality not good |
Example workbook (Excel) · Example table (CSV) · Input fixtures (JSON) · Method and reuse
Choose from the decision, not the label
For a proposed layout, an offline model may answer the question without connecting equipment. For a decision about an installed asset, document which real entity each record belongs to, the permitted record age and the evidence required before acting. Then decide which models and integrations are necessary.
A twin graph is another concrete implementation pattern: Microsoft describes typed entities, properties, components and relationships. That documentation does not make a physics engine a prerequisite for every twin graph. Azure Digital Twins overview.
Do not budget from the name alone. Obtain quotes for the modelling, validation, integration and operating scope you actually need. This comparison has no measured cost or ROI ranking.
Questions
Does a digital twin need continuous real-time data?
Not in every use case. Define the required update frequency and fidelity for the decision. NIST describes synchronization at an application-defined rate; the Digital Twin Consortium also makes frequency explicit.
Can a simulation use measured data?
Yes. Measurements can supply initial conditions, calibration or validation. Using measurements alone does not establish a maintained relationship between the model and an identified real entity.
Does every digital twin contain a physics simulation?
No. A twin may use representational models of state and relationships, computational models, or both. Azure Digital Twins documents entity models and twin graphs; do not assume that every platform includes a physics solver.
Does passing the record-age check prove that a twin is accurate?
No. The example checks record identity, timestamp and declared quality against a selected age limit. It does not test sensor accuracy, model fidelity, security or whether a control action is safe.
Which costs should be compared?
Compare the scope you need: model development, validation, data integration, storage, licensing, operation and maintenance. This page has no verified project-price dataset and does not assume either approach is always cheaper.
Sources and citation
- Digital Twin Consortium: definition and model types
- NIST AMS 400-2: manufacturing implementation scenarios
- Microsoft: Azure Digital Twins models and twin graphs
Suggested citation: Inzonex, Digital twin vs simulation: models, data and update frequency, example dataset version 2026-08-30.1, reviewed 30 August 2026. Cite the worked example with its stated assumptions.
The seven original example records and chart may be reused under CC BY 4.0 with attribution. This permission does not cover third-party publications, logos or code. Definitions and vendor documentation remain linked to their publishers.
