What is included
This selection does not inherit the HP reference temperature. The user can adjust temperature and site count from the IP starting point.
| Reference temperature | 180 °C |
| Starting quantity | 1 · enter your site count |
| Bare heat loss | 4.672 kW |
| With insulation | 0.187 kW |
| Heat retained | 4.485 kW |
| Reduction | 96% |
| Outside surface | 34.8 °C · target met |
Temperature and quantity are editable. Energy rate, installed cost and payback remain blank until entered by the operator.
Why removable insulation matters

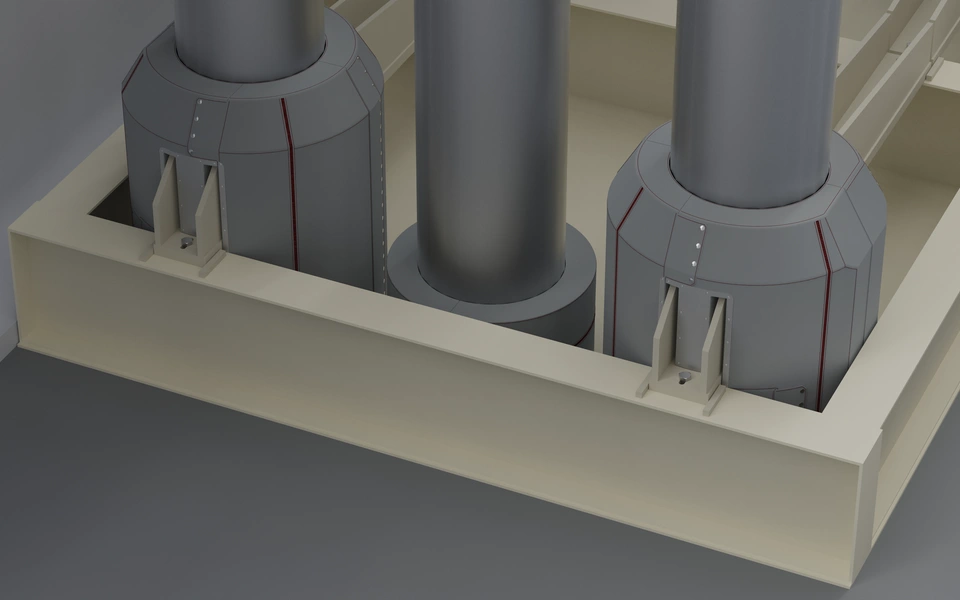

The module can be removed to expose the metal component and fasteners, then returned to the same position. This supports inspection without destroying and rebuilding the insulation each time.
Equipment-life boundary
Lower thermal exposure and repeatable inspection can support equipment care. A fixed life-extension figure needs component material, stress, cycling, drainage and inspection history.
