What is included

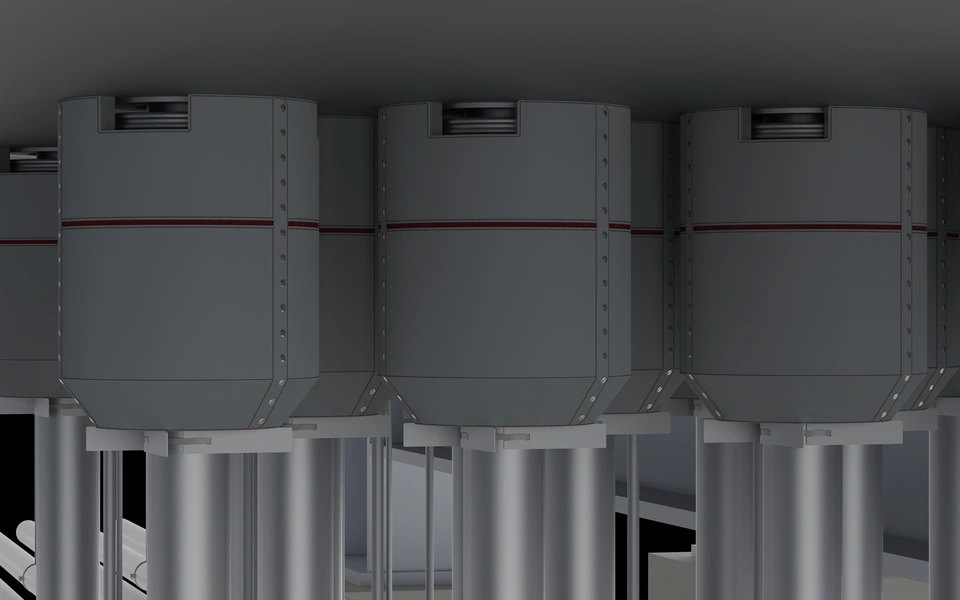

The lower location keeps its own bellows area, pitch and depth. Access and drainage are also checked at the lower level.
| Reference temperature | 420 °C |
| Starting quantity | 1 · enter your site count |
| Bare heat loss | 5.160 kW |
| With insulation | 0.206 kW |
| Heat retained | 4.953 kW |
| Reduction | 96% |
| Outside surface | 38.9 °C · target met |
Temperature and quantity are editable. Energy rate, installed cost and payback remain blank until entered by the operator.
Why removable insulation matters
The module can be removed to expose the metal component and fasteners, then returned to the same position. This supports inspection without destroying and rebuilding the insulation each time.
Equipment-life boundary
Lower thermal exposure and repeatable inspection can support equipment care. A fixed life-extension figure needs component material, stress, cycling, drainage and inspection history.
